1 Executive Summary

The Marine Sensitivity Toolkit (MST) project represents a comprehensive effort to assess the vulnerability of marine ecosystems to offshore energy development across U.S. waters. Building upon the Bureau of Ocean Energy Management’s (BOEM) established environmental sensitivity framework, this project integrates cutting-edge species distribution models, extinction risk assessments, and primary productivity data to create a unified vulnerability scoring system.

2 Introduction

The Marine Sensitivity Toolkit project advances BOEM’s mandate under Section 18(a)(2)(G) of the Outer Continental Shelf (OCS) Lands Act to consider “the relative environmental sensitivity and marine productivity of different areas of the OCS” when making decisions regarding offshore energy development. This report documents the current methodology and implementation status of a comprehensive marine vulnerability assessment system.

2.1 Project Objectives

The primary objectives include:

Develop a spatially-explicit vulnerability index combining species distributions, extinction risk, and marine productivity
Create a scalable, cloud-native data infrastructure for processing large spatial datasets
Implement transparent, reproducible analytical workflows
Provide interactive visualization tools for stakeholder engagement

3 Conceptual Framework

The vulnerability assessment framework builds upon established ecological risk assessment principles where vulnerability (V) is a function of exposure (E), sensitivity (S), and adaptive capacity (A):

\[V = f(E, S, A)\]

For spatial implementation, vulnerability is calculated per grid cell as:

\[V_{cell} = \sum_{spp} p \times w\]

where p represents species presence/suitability and w represents the sensitivity weight.

flowchart TB
    subgraph Inputs
        SD[Species Distributions]
        ER[Extinction Risk]
        PP[Primary Productivity]
        GE[Geographic Extent]
    end

    subgraph Processing
        RS[Rescaling by Ecoregion]
        WA[Weighted Aggregation]
    end

    subgraph Outputs
        CS[Cell Scores]
        ZS[Zone Summaries]
        VI[Vulnerability Index]
    end

    SD --> RS
    ER --> RS
    PP --> RS
    GE --> RS
    RS --> WA
    WA --> CS
    CS --> ZS
    ZS --> VI

    style Inputs fill:#e1f5fe
    style Processing fill:#fff9c4
    style Outputs fill:#c8e6c9

Figure 1: Conceptual framework for marine sensitivity assessment

4 Geographic Scope and Analysis Units

4.1 BOEM Ecoregions

The analysis employs BOEM ecoregions as the primary geographic units, which are ecologically meaningful divisions based on Large Marine Ecosystem boundaries, bathymetry, hydrography, productivity, and species composition (?@fig-ecoregions).

BOEM ecoregions and species richness
Ecoregion	Number of Species	Area (km²)
Western and Central Gulf of America	412	1,500,000
Eastern Gulf of America	389	800,000
California Current	356	1,100,000
Southeastern U.S. Continental Shelf	325	1,000,000
Northeastern U.S. Continental Shelf	298	900,000
Washington/Oregon	267	700,000
Gulf of Alaska	245	1,200,000
East Bering Sea	223	1,800,000
Chukchi/Beaufort Seas	187	2,100,000

4.2 Spatial Resolution

The analysis uses a 0.05° grid (approximately 5.5 km at the equator), providing sufficient resolution for regional planning while maintaining computational efficiency. This represents a 10-fold improvement over the original AquaMaps resolution of 0.5°.

5 Data Sources and Processing

5.1 Species Distribution Models

The project currently incorporates AquaMaps species distribution models, downscaled from 0.5° to 0.05° resolution:

5.2 Extinction Risk Assessment

Extinction risk scores are derived from IUCN Red List categories:

Extinction risk scoring based on IUCN Red List categories
Code	Category	Risk Score	Weight
CR	Critically Endangered	1.0	Highest
EN	Endangered	0.8	High
VU	Vulnerable	0.6	Moderate
NT	Near Threatened	0.4	Low
LC	Least Concern	0.2	Lowest

5.3 Primary Productivity

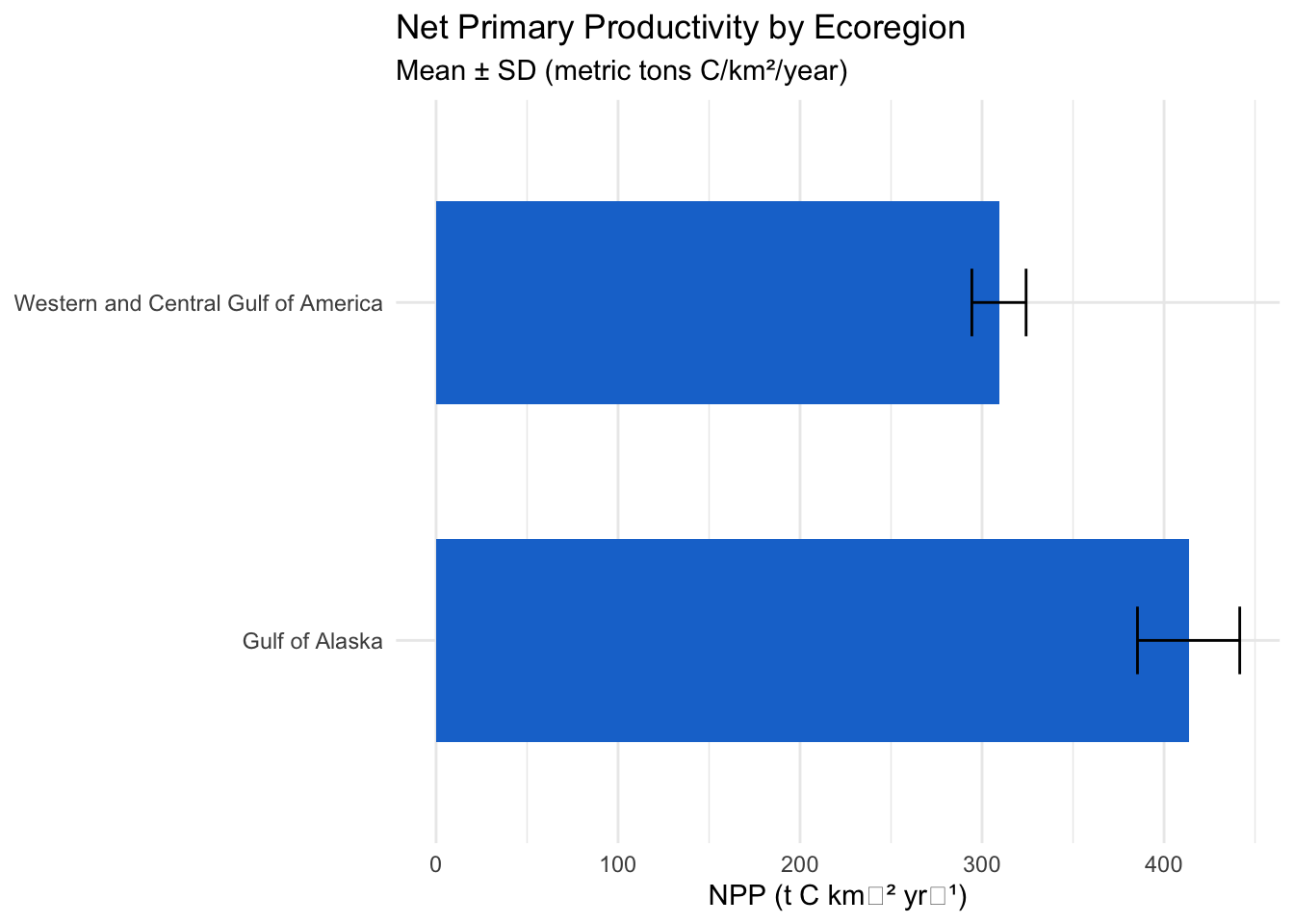

Net Primary Productivity (NPP) is calculated using the Vertically Generalized Production Model (VGPM) with satellite-based observations:

6 Analytical Methods

6.1 Ecoregional Rescaling

To account for regional differences in baseline conditions, all metrics are rescaled within ecoregions:

\[V_{rescaled} = \frac{V_{raw} - V_{min}}{V_{max} - V_{min}} \times 100\]

This approach ensures that vulnerability scores are comparable across different ecological contexts.

6.2 Composite Score Calculation

The final vulnerability score combines multiple components with equal weighting:

graph TD
    A[Vulnerability Score] --> B[Species Components]
    A --> C[Ecosystem Components]

    B --> D[Fish]
    B --> E[Marine Mammals]
    B --> F[Sea Turtles]
    B --> G[Invertebrates]

    C --> H[Primary Productivity]
    C --> I[Benthic Habitats]

    D --> J[Extinction Risk × Suitability]
    E --> J
    F --> J
    G --> J

    style A fill:#ff9800
    style B fill:#4caf50
    style C fill:#2196f3

Figure 2: Hierarchical structure of vulnerability scoring components

6.3 Spatial Aggregation

Scores are aggregated from cells to planning areas using area-weighted averages:

\[Score_{PA} = \frac{\sum_{i} Score_i \times Coverage_i}{\sum_{i} Coverage_i}\]

where Coverage represents the percentage of each cell within the planning area.

7 Technical Implementation

7.1 Database Architecture

The project employs a sophisticated database schema to manage multi-source species distribution data:

erDiagram
    dataset ||--o{ model : contains
    dataset ||--o{ species : includes
    model ||--o{ model_cell : has_values
    species ||--|| model : represents
    cell ||--o{ model_cell : contains
    cell ||--o{ cell_metric : has_metrics
    metric ||--o{ cell_metric : defines
    zone ||--o{ zone_cell : intersects
    zone ||--o{ zone_metric : summarizes

    dataset {
        str ds_key PK
        str name_short
        str source_broad
        str taxa_groups
    }

    model {
        int mdl_seq PK
        str ds_key FK
        str taxa
        str mdl_type
    }

    cell {
        int cell_id PK
        dbl lon
        dbl lat
        dbl area_km2
    }

Figure 3: Simplified database schema for species distribution models

7.2 Cloud-Native Architecture

The system implements cloud-optimized formats and services:

Raster data: Cloud-Optimized GeoTIFFs (COGs) served via TiTiler
Vector data: PostGIS database with pg_tileserv for dynamic tile generation
Compute: DuckDB for high-performance analytical queries

System performance metrics
Component	Processing Time	Data Volume
Species ingestion	8.2 hours	17,550 species
Metric calculation	34 seconds	604M cells
Spatial aggregation	2.1 minutes	661K cells
Tile generation	< 100ms	Dynamic

8 Current Status and Results

8.1 Data Coverage

As of June 2025, the database contains:

17,550 species distribution models
661,372 analysis cells covering U.S. waters
6 taxonomic groups with extinction risk assessments
20 BOEM planning areas analyzed

8.2 Preliminary Results

Initial vulnerability assessments reveal substantial variation across planning areas:

8.3 Validation and Uncertainty

The project incorporates multiple validation approaches:

Cross-validation with independent species occurrence data
Sensitivity analysis of weighting schemes
Expert review of regional patterns
Comparison with previous BOEM sensitivity assessments

9 Applications and Outputs

9.1 Interactive Visualization Tools

The project provides multiple web-based applications for data exploration:

Vulnerability Mapper: Interactive visualization of composite scores
Species Explorer: Detailed species distribution and sensitivity information
Score Calculator: Custom weighting and scenario analysis

9.2 Data Products

All data products are available in multiple formats:

Raster layers: Cloud-optimized GeoTIFFs at 0.05° resolution
Vector summaries: Planning area and ecoregion statistics
Tabular exports: Species lists and sensitivity scores
API access: RESTful endpoints for programmatic access

10 Discussion and Future Directions

10.1 Methodological Advances

This project represents several key advances over previous marine sensitivity assessments:

Higher spatial resolution (0.05° vs 0.5°)
Comprehensive species coverage (17,550 species)
Standardized extinction risk integration
Cloud-native architecture for scalability
Transparent, reproducible workflows

10.2 Limitations and Uncertainties

Important limitations include:

Temporal dynamics: Current models represent static distributions
Data gaps: Limited coverage for deep-sea and Arctic species
Weighting schemes: Equal weighting may not reflect ecological importance
Climate change: Future distributions not yet incorporated

10.3 Future Development

Planned enhancements include:

Integration of additional species distribution datasets
Dynamic modeling of seasonal variations
Climate change projection scenarios
Habitat-specific vulnerability assessments
Cumulative impact analysis for multiple stressors

11 Conclusions

The Marine Sensitivity Toolkit provides a robust, scalable framework for assessing marine ecosystem vulnerability to offshore energy development. By combining comprehensive species distribution data with extinction risk assessments and primary productivity metrics, the system offers decision-makers a powerful tool for spatial planning and impact assessment.

The cloud-native architecture and open-source approach ensure that the system can evolve with advancing science and stakeholder needs, supporting BOEM’s mission to manage ocean resources responsibly while protecting marine biodiversity.

12 References

13 Appendix A: Technical Specifications

Technical specifications of the Marine Sensitivity Index system
Component	Specification
Spatial Resolution	0.05° (~5.5 km)
Temporal Coverage	2019-2025
Species Coverage	17,550 species
Database Size	~10 GB
Processing Platform	DuckDB + PostGIS
Web Services	TiTiler, pg_tileserv, Plumber API

14 Appendix B: Data Quality Metrics

Data quality and completeness metrics
Metric	Value	Target	Status
Species with Red List assessments	68%	75%	In Progress
Cells with >10 species	92%	95%	Near Complete
Planning areas fully covered	100%	100%	Complete
Ecoregions analyzed	9 of 11	11 of 11	In Progress
