Diagnose spatial data corruption in model_cell for Rice’s whale and other species
Rice’s whale (taxon_id=1576133) rng_iucn shows only ~1,969 cells (identical to ca_nmfs), but the correct IUCN polygon covers ~49,500 km² and should produce ~3,000-4,000 cells. The Critical Habitat (ch_nmfs) has 2,677 cells — more than the supposedly-larger IUCN range, which is backwards. This notebook diagnoses when/how the corruption occurred by comparing database backups and raw source files.
librarian::shelf(
DBI,
dplyr,
duckdb,
glue,
here,
leaflet,
purrr,
sf,
terra,
tibble,
quiet = T
)
source(here("libs/paths.R"))
cell_tif <- glue("{dir_derived}/r_bio-oracle_planarea.tif")
r_cell <- rast(cell_tif, lyrs = "cell_id")dir_archive <- glue("{dir_big}/archive_2026-02-12")
# define database paths (read-only)
db_paths <- c(
"Jan 29" = glue("{dir_archive}/sdm_2026-01-29.duckdb"),
"Feb 10" = glue("{dir_archive}/sdm_2026-02-10.duckdb"),
"Feb 12 (v3 backup)" = glue("{dir_archive}/sdm_v3_2026-02-12.duckdb"),
"v3 current" = glue("{dir_big}/v3/sdm.duckdb"),
"v3b" = glue("{dir_big}/v3b/sdm.duckdb")
)
# filter to paths that actually exist
db_paths <- db_paths[file.exists(db_paths)]
message(glue(
"Found {length(db_paths)} databases: {paste(names(db_paths), collapse = ', ')}"
))Found 5 databases: Jan 29, Feb 10, Feb 12 (v3 backup), v3 current, v3b# open read-only connections
cons <- map(db_paths, \(p) dbConnect(duckdb(dbdir = p, read_only = TRUE)))
names(cons) <- names(db_paths)taxon_id_ricei <- 1576133L
d_compare <- map_dfr(names(cons), \(db_name) {
con <- cons[[db_name]]
# check if taxon_model table exists
if (!dbExistsTable(con, "taxon_model")) {
return(tibble())
}
tryCatch(
{
tbl(con, "taxon_model") |>
filter(taxon_id == !!taxon_id_ricei) |>
select(taxon_id, mdl_seq) |>
inner_join(
tbl(con, "model") |> select(mdl_seq, ds_key),
by = "mdl_seq"
) |>
inner_join(
tbl(con, "model_cell") |>
group_by(mdl_seq) |>
summarize(
n_cells = n(),
v_min = min(value, na.rm = TRUE),
v_max = max(value, na.rm = TRUE),
.groups = "drop"
),
by = "mdl_seq"
) |>
collect() |>
mutate(db_version = db_name)
},
error = \(e) {
message(glue("Error querying {db_name}: {e$message}"))
tibble()
}
)
})
if (nrow(d_compare) > 0) {
d_compare |>
select(db_version, ds_key, mdl_seq, n_cells, v_min, v_max) |>
arrange(db_version, ds_key) |>
knitr::kable(caption = "Rice's whale model_cell summary across DB versions")
} else {
message("No data found for Rice's whale in any database")
}| db_version | ds_key | mdl_seq | n_cells | v_min | v_max |
|---|---|---|---|---|---|
| Feb 10 | ca_nmfs | 23004 | 1969 | 100 | 100 |
| Feb 10 | ch_nmfs | 18232 | 2677 | 100 | 100 |
| Feb 10 | ms_merge | 25416 | 3617 | 100 | 100 |
| Feb 10 | rng_iucn | 23505 | 1969 | 50 | 50 |
| Feb 10 | rng_iucn | 23505 | 1969 | 50 | 50 |
| Feb 12 (v3 backup) | ca_nmfs | 23004 | 1969 | 100 | 100 |
| Feb 12 (v3 backup) | ch_nmfs | 18232 | 2677 | 100 | 100 |
| Feb 12 (v3 backup) | ms_merge | 25416 | 3617 | 100 | 100 |
| Feb 12 (v3 backup) | rng_iucn | 23505 | 1969 | 50 | 50 |
| v3 current | ca_nmfs | 23004 | 1969 | 100 | 100 |
| v3 current | ch_nmfs | 18232 | 2677 | 100 | 100 |
| v3 current | ms_merge | 25416 | 3617 | 100 | 100 |
| v3 current | rng_iucn | 23505 | 1969 | 50 | 50 |
| v3b | ca_nmfs | 23004 | 1969 | 100 | 100 |
| v3b | ch_nmfs | 18232 | 2677 | 100 | 100 |
| v3b | ms_endemism | 75452 | 1676 | 43 | 43 |
| v3b | ms_er | 95087 | 3617 | 100 | 100 |
| v3b | ms_merge | 104903 | 1676 | 43 | 43 |
| v3b | ms_suit | 85268 | 1676 | 43 | 43 |
| v3b | rng_iucn | 23505 | 1969 | 50 | 50 |
Map cell_id values back to raster for each layer from the current v3 database.
con_v3 <- cons[["v3 current"]]
# get all Rice's whale layers
d_layers <- tbl(con_v3, "taxon_model") |>
filter(taxon_id == !!taxon_id_ricei) |>
select(taxon_id, mdl_seq) |>
inner_join(
tbl(con_v3, "model") |> select(mdl_seq, ds_key),
by = "mdl_seq"
) |>
collect()
# rasterize each layer
r_layers <- map(1:nrow(d_layers), \(i) {
lyr <- d_layers[i, ]
d_mc <- tbl(con_v3, "model_cell") |>
filter(mdl_seq == !!lyr$mdl_seq) |>
collect()
r <- init(r_cell[[1]], NA)
r[d_mc$cell_id] <- d_mc$value
names(r) <- lyr$ds_key
r
})
names(r_layers) <- d_layers$ds_key
# display each layer
for (nm in names(r_layers)) {
r <- trim(r_layers[[nm]])
message(glue("{nm}: {ncell(r[!is.na(r)])} non-NA cells"))
plot(r, main = glue("Rice's whale — {nm}"))

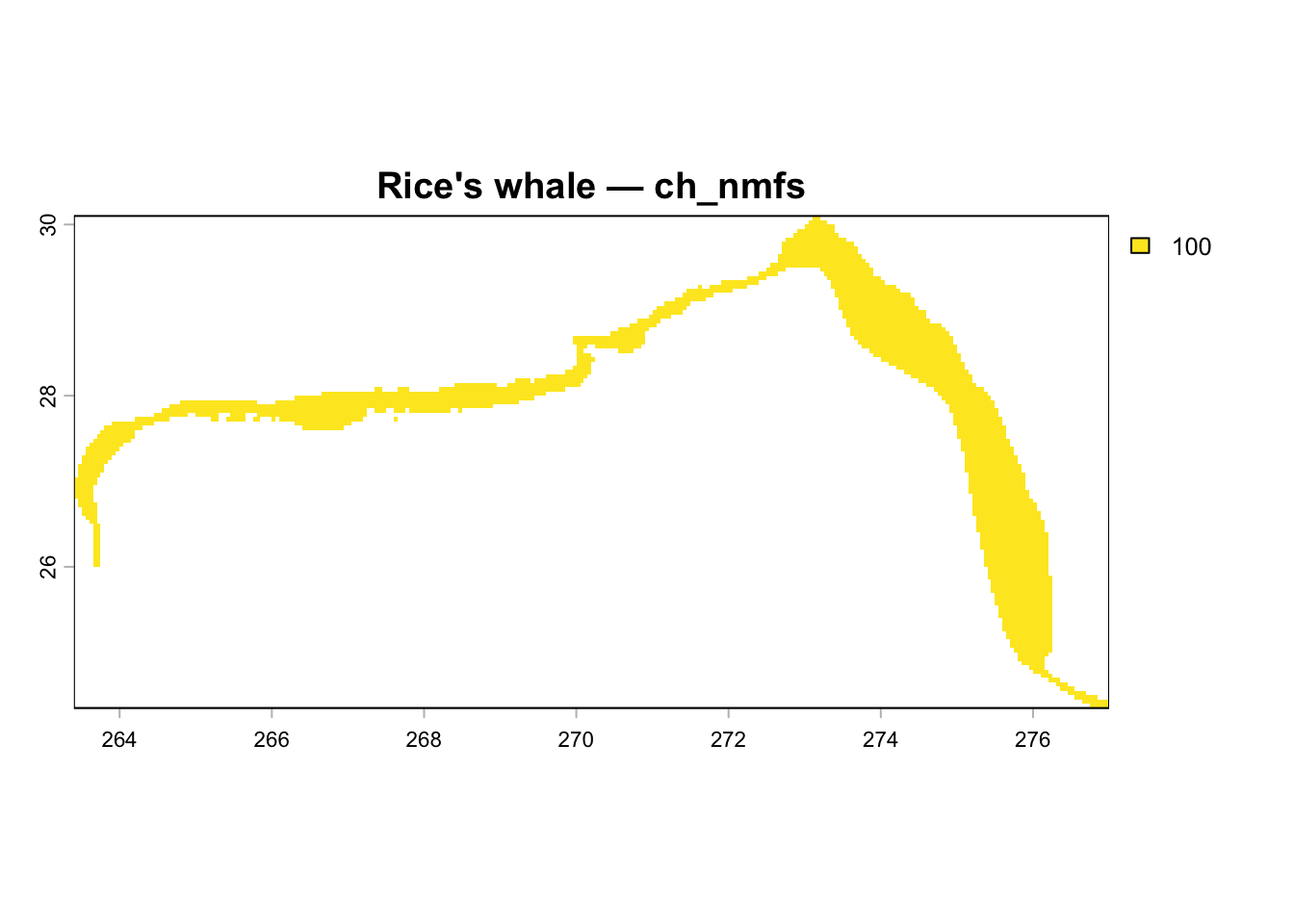

}ch_nmfs: 2677 non-NA cells

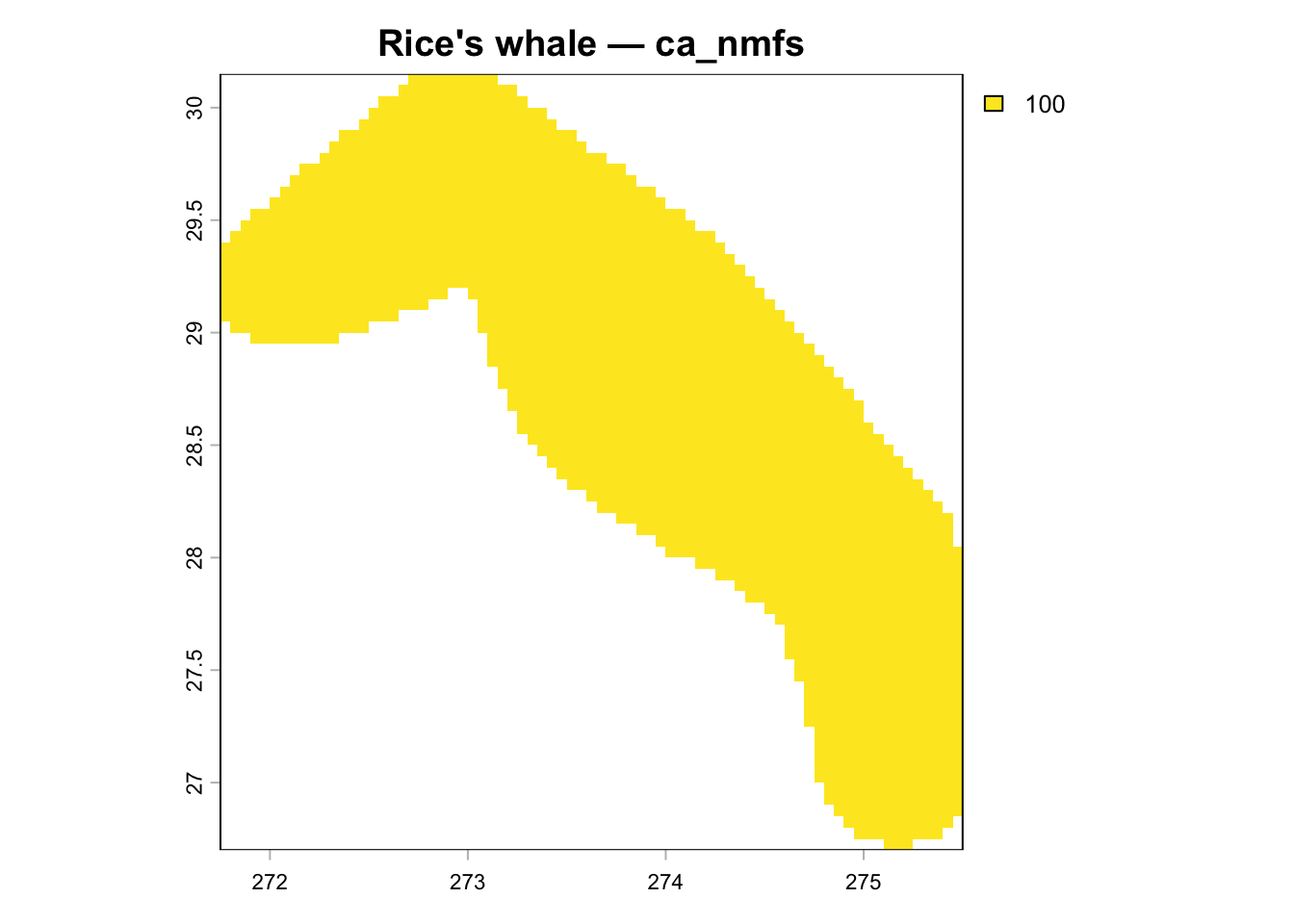

ca_nmfs: 1969 non-NA cells

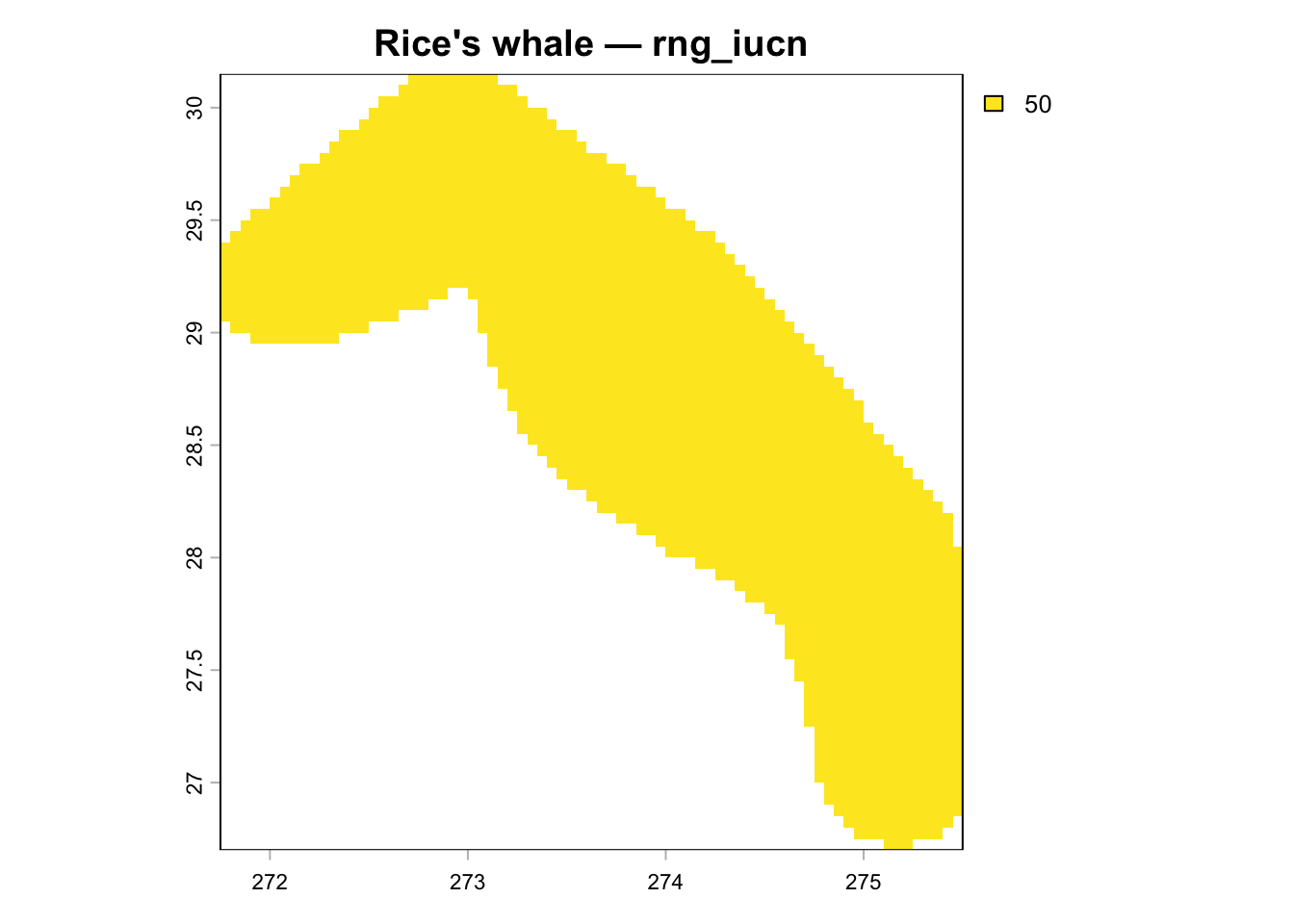

rng_iucn: 1969 non-NA cells

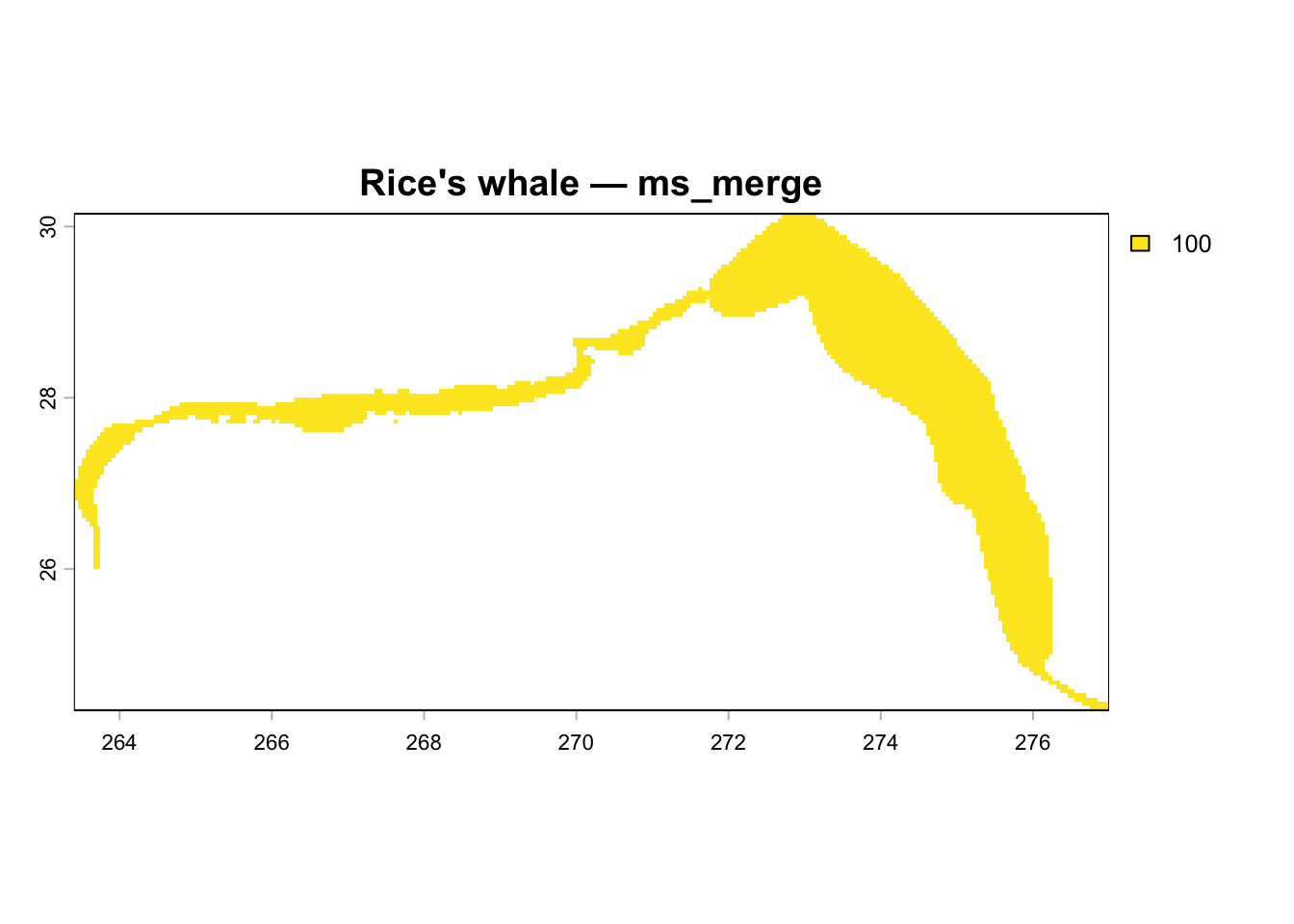

ms_merge: 3617 non-NA cells
# combine all layers into a single stack for comparison
r_all <- map(r_layers, \(r) trim(r)) |>
purrr::reduce(\(a, b) {
# extend to common extent
e <- ext(
min(ext(a)[1], ext(b)[1]),
max(ext(a)[2], ext(b)[2]),
min(ext(a)[3], ext(b)[3]),
max(ext(a)[4], ext(b)[4])
)
extend(a, e) |>
c(extend(b, e))
})
# plot the first available layer interactively
if (length(r_layers) > 0) {
r_plot <- trim(r_layers[[1]])
plet(r_plot, main = names(r_layers)[1])
}# iucn range polygon
iucn_shp <- glue(
"{dir_raw}/iucnredlist.org/MAMMALS_MARINE_ONLY/MAMMALS_MARINE_ONLY.shp"
)
if (file.exists(iucn_shp)) {
sf_iucn <- st_read(iucn_shp, quiet = TRUE) |>
filter(sci_name == "Balaenoptera ricei")
message(glue(
"IUCN polygon: {nrow(sf_iucn)} features, ",
"area = {round(sum(st_area(sf_iucn)) / 1e6)} km²"
))
} else {
message(glue("IUCN shapefile not found: {iucn_shp}"))
sf_iucn <- NULL
}IUCN polygon: 1 features, area = 49485 km²# nmfs core area polygon
core_dir <- glue(
"{dir_raw}/fisheries.noaa.gov/core-areas/",
"shapefile_Rices_whale_core_distribution_area_Jun19_SERO"
)
core_shp <- glue(
"{core_dir}/",
"shapefile_Rices_whale_core_distribution_area_Jun19_SERO.shp"
)
if (file.exists(core_shp)) {
sf_core <- st_read(core_shp, quiet = TRUE)
message(glue(
"NMFS Core Area: {nrow(sf_core)} features, ",
"area = {round(sum(st_area(sf_core)) / 1e6)} km²"
))
} else {
message(glue("Core area shapefile not found: {core_shp}"))
sf_core <- NULL
}NMFS Core Area: 1 features, area = 49485 km²# critical habitat from gdb
ch_gdb <- glue(
"{dir_raw}/fisheries.noaa.gov/",
"NMFS_ESA_Critical_Habitat_20230505_2025-07-17.gdb"
)
if (file.exists(ch_gdb)) {
# list layers to find Rice's whale critical habitat
lyrs <- st_layers(ch_gdb)
message(glue("GDB layers: {paste(lyrs$name, collapse = ', ')}"))
# try to find the layer containing Rice's whale
# (user may need to adjust layer name)
ricei_lyr <- lyrs$name[grepl(
"Rice|Bryde|Balaenoptera",
lyrs$name,
ignore.case = TRUE
)]
if (length(ricei_lyr) > 0) {
sf_ch <- st_read(ch_gdb, layer = ricei_lyr[1], quiet = TRUE)
message(glue("CH layer '{ricei_lyr[1]}': {nrow(sf_ch)} features"))
} else {
message("No Rice's whale layer found in GDB — listing all layers above")
sf_ch <- NULL
}
} else {
message(glue("Critical Habitat GDB not found: {ch_gdb}"))
sf_ch <- NULL
}GDB layers: AbaloneBlack_20111027, Bocaccio_PugetSoundGeorgiaBasinDPS_20141113, CoralElkhorn_20081126, CoralStaghorn_20081126, RockfishYelloweye_PugetSoundGeorgiaBasinDPS_20141113, SalmonAtlantic_GulfofMaineDPS_20090619, SalmonChinook_PugetSoundESU_20050902_poly, SalmonChinook_SacramentoRiverwinterrunESU_19930616_poly, SalmonChum_HoodCanalsummerrunESU_20050902_poly, SalmonSockeye_SnakeRiverESU_19931228_poly, SawfishSmalltooth_USDPS_20090902, SealHawaiianMonk_20150821_poly, SeaLionSteller_WesternDPS_19940615, SeaTurtleGreen_NorthAtlanticDPS_19980902, SeaTurtleHawksbill_19980902, SeaTurtleLeatherback_20120126, SeaTurtleLoggerhead_NorthwestAtlanticOceanDPS_20140710, SturgeonAtlantic_GulfSubspecies_20030319_poly, SturgeonGreen_SouthernDPS_20091009_poly, WhaleBeluga_CookInletDPS_20110411, WhaleFalseKiller_MainHawaiianIslandsInsularDPS_20180724, WhaleHumpback_CentralAmericaDPS_20210421, WhaleHumpback_MexicoDPS_20210421, WhaleHumpback_WesternNorthPacificDPS_20210421, WhaleKiller_SouthernResidentDPS_20210802, WhaleNorthAtlanticRight_20160127, WhaleNorthPacificRight_20080408, Eulachon_SouthernDPS_20111020, SalmonChinook_CaliforniaCoastalESU_20050902, SalmonChinook_CentralValleyspringrunESU_20050902, SalmonChinook_LowerColumbiaRiverESU_20050902, SalmonChinook_PugetSoundESU_20050902_line, SalmonChinook_SacramentoRiverwinterrunESU_19930616_line, SalmonChinook_SnakeRiverfallrunESU_19931228, SalmonChinook_UpperColumbiaRiverspringrunESU_20050902, SalmonChinook_UpperWillametteRiverESU_20050902, SalmonChum_ColumbiaRiverESU_20050902, SalmonChum_HoodCanalsummerrunESU_20050902_line, SalmonCoho_CentralCaliforniaCoastESU_19990505, SalmonCoho_LowerColumbiaRiverESU_20160224, SalmonCoho_OregonCoastESU_20080211, SalmonSockeye_OzetteLakeESU_20050902, SalmonSockeye_SnakeRiverESU_19931228_line, SealHawaiianMonk_20150821_line, Steelhead_CaliforniaCentralValleyDPS_20050902, Steelhead_CentralCaliforniaCoastDPS_20050902, Steelhead_LowerColumbiaRiverDPS_20050902, Steelhead_MiddleColumbiaRiverDPS_20050902, Steelhead_NorthernCaliforniaDPS_20050902, Steelhead_PugetSoundDPS_20160224, Steelhead_SnakeRiverBasinDPS_20050902, Steelhead_SouthCentralCaliforniaCoastDPS_20050902, Steelhead_SouthernCaliforniaDPS_20050902, Steelhead_UpperColumbiaRiverDPS_20050902, Steelhead_UpperWillametteRiverDPS_20050902, SturgeonAtlantic_AtlanticSubspecies_CarolinaDPS_20170817, SturgeonAtlantic_AtlanticSubspecies_ChesapeakeBayDPS_20170817, SturgeonAtlantic_AtlanticSubspecies_GulfofMaineDPS_20170817, SturgeonAtlantic_AtlanticSubspecies_NewYorkBightDPS_20170817, SturgeonAtlantic_AtlanticSubspecies_SouthAtlanticDPS_20170817, SturgeonAtlantic_GulfSubspecies_20030319_line, SturgeonGreen_SouthernDPS_20091009_line, SealBearded_BeringiaDPS_20220401, SealRinged_ArcticSubspecies_20220401, All_critical_habitat_line_20220404, All_critical_habitat_poly_20230724, Proposed_SeaTurtleGreen_NorthAtlanticDPS_20230719, Proposed_SeaTurtleGreen_SouthAtlanticDPS_20230719, Proposed_SeaTurtleGreen_EastPacificDPS_20230719, Proposed_SeaTurtleGreen_CentralNorthPacificDPS_20230719, Proposed_SeaTurtleGreen_CentralSouthPacificDPS_20230719, Proposed_SeaTurtleGreen_CentralWestPacificDPS_20230719, Proposed_RicesWhale_20230724, CoralBoulderStar_20230809, CoralLobedStar_20230809, CoralMountainousStar_20230809, CoralPillar_20230809, CoralRoughCactus_20230809, GrouperNassau_20240102, Coral_AcroporaGlobiceps_20250715, Coral_AcroporaRetusa_20250715, Coral_AcroporaSpeciosa_20250715, Coral_FimbriaphylliaParadivisa_20250715, Coral_IsoporaCrateriformis_20250715CH layer 'Proposed_RicesWhale_20230724': 1 features# rasterize IUCN polygon using the same grid as the DB
# note: r_cell uses 0-360 longitude; polygon uses -180-180, so shift by +360
if (!is.null(sf_iucn)) {
v_iucn <- vect(sf_iucn) |> shift(dx = 360)
r_iucn_poly <- rasterize(v_iucn, r_cell, field = 1, background = NA)
n_expected <- sum(!is.na(values(r_iucn_poly)))
message(glue(
"Expected rng_iucn cells from polygon rasterization: {n_expected}"
))
# compare to db count
if ("rng_iucn" %in% names(r_layers)) {
n_db <- sum(!is.na(values(r_layers[["rng_iucn"]])))
message(glue(
"DB rng_iucn cells: {n_db} vs polygon rasterization: {n_expected}"
))
message(glue(
"Ratio: {round(n_db / n_expected * 100, 1)}%",
" — {ifelse(abs(n_db - n_expected) < 100, 'OK', 'CORRUPTION DETECTED')}"
))
}
# plot overlay
if (n_expected > 0) {

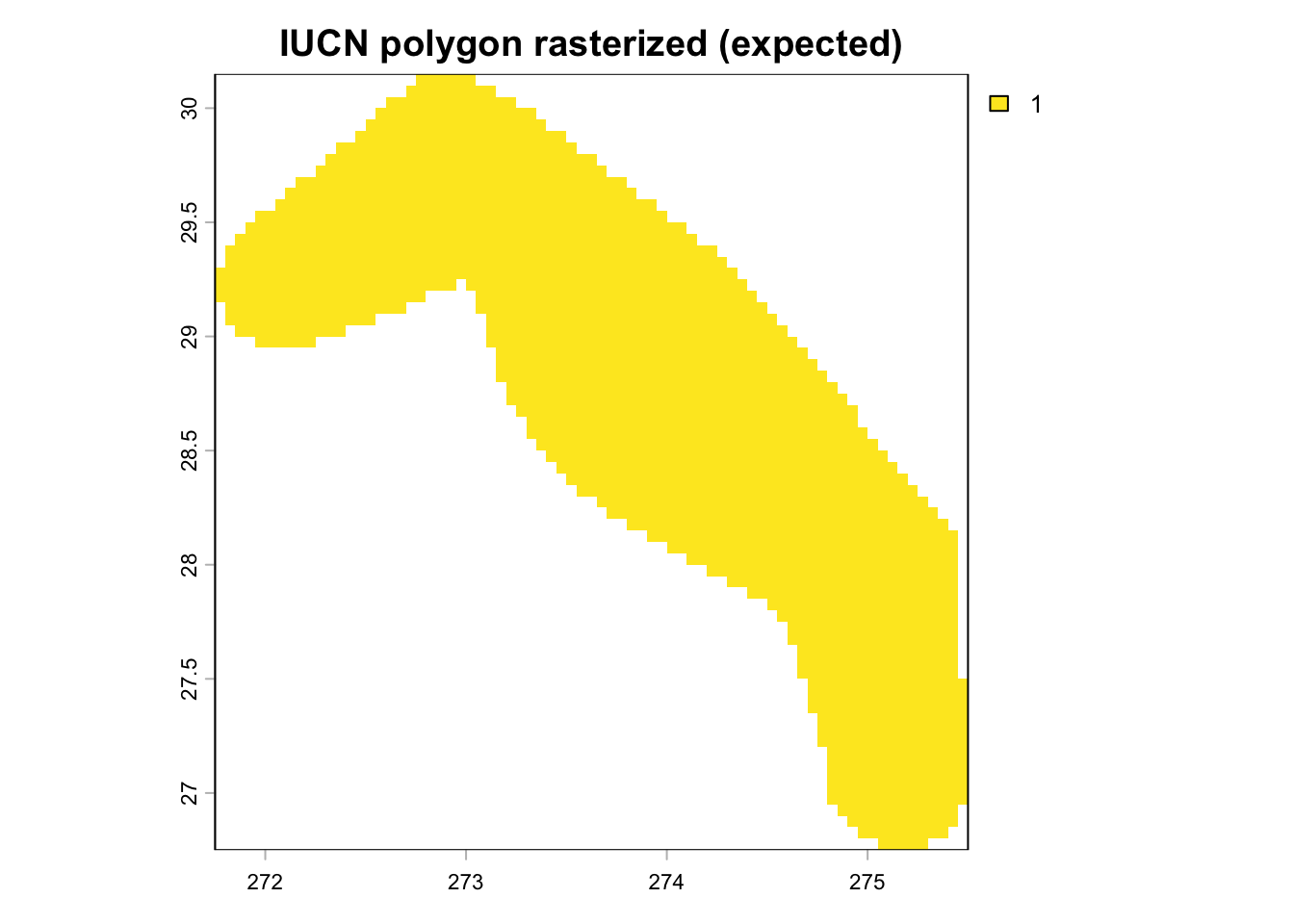

plot(trim(r_iucn_poly), main = "IUCN polygon rasterized (expected)")
} else {
message("No cells from polygon rasterization — CRS/extent issue")
}
if ("rng_iucn" %in% names(r_layers)) {

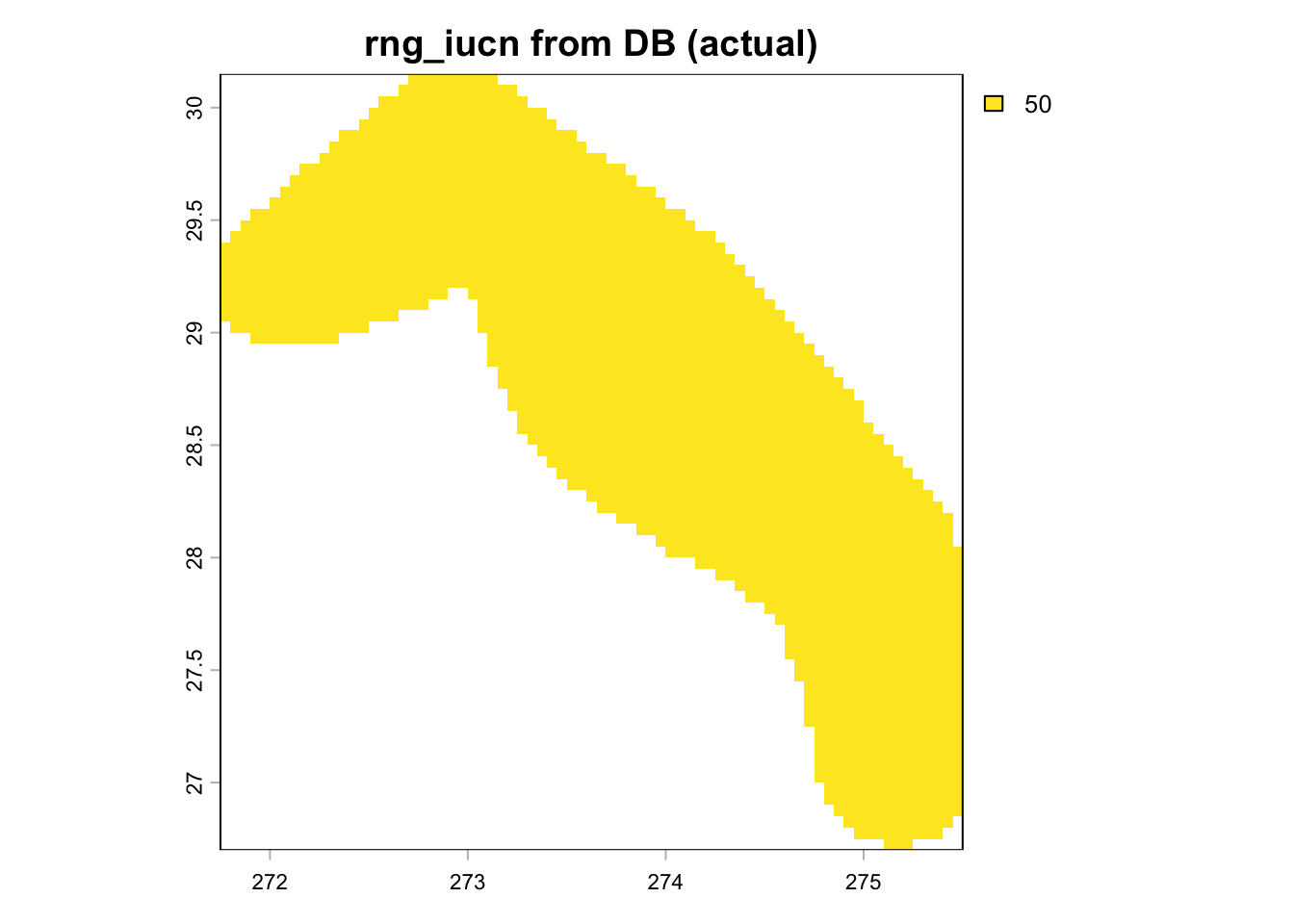

plot(trim(r_layers[["rng_iucn"]]), main = "rng_iucn from DB (actual)")
}
}Expected rng_iucn cells from polygon rasterization: 1828DB rng_iucn cells: 1969 vs polygon rasterization: 1828Ratio: 107.7% — CORRUPTION DETECTED
Query ALL species with rng_iucn data and check for suspicious patterns.
# use current v3 database
con_check <- cons[["v3 current"]]
# check for species with identical cell sets across datasets
d_dup_cells <- dbGetQuery(
con_check,
"
WITH ds_cells AS (
SELECT tm.taxon_id, m.ds_key, m.mdl_seq, COUNT(mc.cell_id) as n_cells
FROM taxon_model tm
JOIN model m ON tm.mdl_seq = m.mdl_seq
JOIN model_cell mc ON m.mdl_seq = mc.mdl_seq
WHERE m.ds_key IN ('rng_iucn', 'ca_nmfs', 'ch_nmfs', 'ch_fws', 'rng_fws')
GROUP BY tm.taxon_id, m.ds_key, m.mdl_seq
)
SELECT a.taxon_id, a.ds_key as ds_a, b.ds_key as ds_b,
a.n_cells, a.mdl_seq as mdl_a, b.mdl_seq as mdl_b
FROM ds_cells a
JOIN ds_cells b ON a.taxon_id = b.taxon_id
AND a.ds_key < b.ds_key
AND a.n_cells = b.n_cells
ORDER BY a.taxon_id, a.ds_key"
)
if (nrow(d_dup_cells) > 0) {
message(glue(
"{nrow(d_dup_cells)} taxon-dataset pairs with identical cell counts"
))
d_dup_cells |>
knitr::kable(
caption = "Species with identical cell counts across datasets (potential corruption)"
)
} else {
message("No species found with identical cell counts across datasets")
}1 taxon-dataset pairs with identical cell counts| taxon_id | ds_a | ds_b | n_cells | mdl_a | mdl_b |
|---|---|---|---|---|---|
| 1576133 | ca_nmfs | rng_iucn | 1969 | 23004 | 23505 |
d_rng <- dbGetQuery(
con_check,
"
SELECT
tm.taxon_id,
t.scientific_name,
t.common_name,
t.sp_cat,
m.mdl_seq,
COUNT(mc.cell_id) as n_cells,
MIN(mc.value) as v_min,
MAX(mc.value) as v_max
FROM taxon_model tm
JOIN model m ON tm.mdl_seq = m.mdl_seq
JOIN model_cell mc ON m.mdl_seq = mc.mdl_seq
LEFT JOIN taxon t ON tm.taxon_id = t.taxon_id
WHERE m.ds_key = 'rng_iucn'
GROUP BY tm.taxon_id, t.scientific_name, t.common_name, t.sp_cat, m.mdl_seq
ORDER BY n_cells ASC"
)
message(glue(
"Total species with rng_iucn: {nrow(d_rng)}, ",
"cell count range: {min(d_rng$n_cells)} - {max(d_rng$n_cells)}"
))Total species with rng_iucn: 1515, cell count range: 6 - 562423# show species with suspiciously few cells (bottom 20)
d_rng |>
head(20) |>
knitr::kable(
caption = "Species with fewest rng_iucn cells (potential corruption)"
)| taxon_id | scientific_name | common_name | sp_cat | mdl_seq | n_cells | v_min | v_max |
|---|---|---|---|---|---|---|---|
| 105901 | Centrophorus squamosus | leafscale gulper shark | fish | 19623 | 6 | 25 | 25 |
| 105827 | Hydrolagus pallidus | pale ghost shark | fish | 19680 | 6 | 1 | 1 |
| 271304 | Myxine hubbsi | NA | fish | 23444 | 11 | 1 | 1 |
| 220030 | Nebrius ferrugineus | tawny shark | fish | 19713 | 17 | 5 | 5 |
| 275411 | Breviraja colesi | Lightnose skate | fish | 19600 | 19 | 1 | 1 |
| 217356 | Negaprion acutidens | sicklefin lemon shark | fish | 19714 | 21 | 25 | 25 |
| 313100 | Stegostoma tigrinum | Zebra shark | fish | 19759 | 21 | 25 | 25 |
| 105849 | Pristis pristis | common sawfish | fish | 19724 | 32 | 50 | 50 |
| 316573 | Bathytoshia brevicaudata | Short-tail stingray | fish | 19594 | 37 | 1 | 1 |
| 712972 | Taeniurops meyeni | Round ribbontail ray | fish | 19761 | 40 | 5 | 5 |
| 275232 | Syngnathus scovelli | Gulf pipefish | fish | 19821 | 41 | 1 | 1 |
| 221382 | Chlopsis dentatus | mottled false moray | fish | 23192 | 52 | 1 | 1 |
| 271327 | Rhizoprionodon longurio | Pacific sharpnose shark | fish | 19737 | 73 | 5 | 5 |
| 271947 | Ophichthus cylindroideus | Dusky snake eel | fish | 23323 | 83 | 1 | 1 |
| 218539 | Plectorhinchus gibbosus | Harry Hotlips | fish | 19543 | 85 | 1 | 1 |
| 282384 | Protosciaena trewavasae | New Grenada drum | fish | 23133 | 96 | 1 | 1 |
| 426444 | Conus cardinalis | cardinal cone | invertebrate | 23037 | 105 | 2 | 2 |
| 218016 | Hippichthys spicifer | bellybarred pipefish | fish | 19798 | 109 | 1 | 1 |
| 271479 | Gymnura marmorata | California butterfly ray | fish | 19670 | 111 | 2 | 2 |
| 321650 | Springeria folirostris | Leaf-nose leg skate | fish | 19752 | 125 | 1 | 1 |
# compare Rice's whale rng_iucn across all DB versions
d_timeline <- map_dfr(names(cons), \(db_name) {
con <- cons[[db_name]]
tryCatch(
{
d <- dbGetQuery(
con,
glue(
"
SELECT m.ds_key, COUNT(mc.cell_id) as n_cells,
MIN(mc.value) as v_min, MAX(mc.value) as v_max
FROM taxon_model tm
JOIN model m ON tm.mdl_seq = m.mdl_seq
JOIN model_cell mc ON m.mdl_seq = mc.mdl_seq
WHERE tm.taxon_id = {taxon_id_ricei}
AND m.ds_key IN ('rng_iucn', 'ca_nmfs', 'ch_nmfs', 'ms_merge')
GROUP BY m.ds_key"
)
)
d$db_version <- db_name
d
},
error = \(e) tibble()
)
})
if (nrow(d_timeline) > 0) {
d_timeline |>
select(db_version, ds_key, n_cells, v_min, v_max) |>
arrange(db_version, ds_key) |>
knitr::kable(
caption = "Rice's whale cell counts across DB versions (timeline)"
)
} else {
message("No timeline data found")
}| db_version | ds_key | n_cells | v_min | v_max |
|---|---|---|---|---|
| Feb 10 | ca_nmfs | 1969 | 100 | 100 |
| Feb 10 | ch_nmfs | 2677 | 100 | 100 |
| Feb 10 | ms_merge | 3617 | 100 | 100 |
| Feb 10 | rng_iucn | 3938 | 50 | 50 |
| Feb 12 (v3 backup) | ca_nmfs | 1969 | 100 | 100 |
| Feb 12 (v3 backup) | ch_nmfs | 2677 | 100 | 100 |
| Feb 12 (v3 backup) | ms_merge | 3617 | 100 | 100 |
| Feb 12 (v3 backup) | rng_iucn | 1969 | 50 | 50 |
| v3 current | ca_nmfs | 1969 | 100 | 100 |
| v3 current | ch_nmfs | 2677 | 100 | 100 |
| v3 current | ms_merge | 3617 | 100 | 100 |
| v3 current | rng_iucn | 1969 | 50 | 50 |
| v3b | ca_nmfs | 1969 | 100 | 100 |
| v3b | ch_nmfs | 2677 | 100 | 100 |
| v3b | ms_merge | 1676 | 43 | 43 |
| v3b | rng_iucn | 1969 | 50 | 50 |
message(
"
Timeline of key events:
- Jan 22-23: IUCN range rasterization (6.2 hrs)
- Jan 29: backup sdm_2026-01-29.duckdb
- Feb 10: backup sdm_2026-02-10.duckdb
- Feb 11: fix_taxon_model_dups.qmd — cleaned duplicates
- Feb 12: calc_scores.qmd recalculated — backup sdm_v3_2026-02-12.duckdb
If Jan 29 backup already shows ~1,969 cells for rng_iucn, then the corruption
happened during or immediately after IUCN range rasterization (Jan 22-23).
Check if the rasterized TIF was correct (sf::summarize() with sf_use_s2(FALSE)
may have produced GEOMETRYCOLLECTION instead of valid polygon).
"
)
Timeline of key events:
- Jan 22-23: IUCN range rasterization (6.2 hrs)
- Jan 29: backup sdm_2026-01-29.duckdb
- Feb 10: backup sdm_2026-02-10.duckdb
- Feb 11: fix_taxon_model_dups.qmd — cleaned duplicates
- Feb 12: calc_scores.qmd recalculated — backup sdm_v3_2026-02-12.duckdb
If Jan 29 backup already shows ~1,969 cells for rng_iucn, then the corruption
happened during or immediately after IUCN range rasterization (Jan 22-23).
Check if the rasterized TIF was correct (sf::summarize() with sf_use_s2(FALSE)
may have produced GEOMETRYCOLLECTION instead of valid polygon).walk(cons, \(con) dbDisconnect(con, shutdown = TRUE))
