v7 is the default live generation (/scores, /species, and the API’s ver=latest), and its drawn-area report path scans model_cell — partitioned by nothing, keyed by mdl_seq — for every per-cell question. This builds v7 the same cell-oriented surface v8 already has, so msens::species_for_cells() prunes to a handful of spatial partitions instead.
Two things make this not a rerun of the v8 recipe:

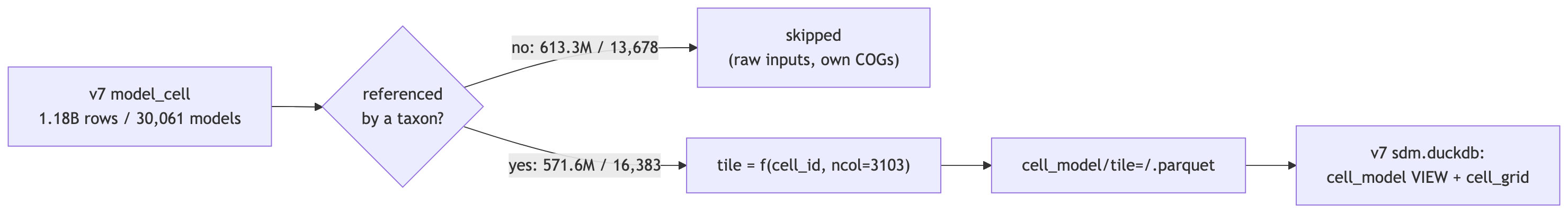

cell_ids come from the regional 0–360 bio-oracle raster, 3103 × 2006. The tile key must use 3103, and readers must discover that rather than assume it — hence msens::cell_grid_ncol() and the cell_grid sidecar table written below. Using 7200 here would not error; it would simply scatter a compact polygon across many tiles and forfeit the pruning.model_cell holds 1,184,895,607 rows across 30,061 models, but species_for_cells() joins taxon ON taxon.mdl_seq = model_cell.mdl_seq — and 13,678 models / 613,315,679 rows (52%) are not referenced by any taxon. They are the raw per-dataset inputs the species app browses individually (10,997 am_0.05, 1,518 rng_iucn, …), reachable via their own COGs. Including them would double the artifact for no reader. V7_CELLMODEL_ALL=1 overrides.flowchart LR
mc["v7 model_cell<br/>1.18B rows / 30,061 models"] --> f{"referenced<br/>by a taxon?"}
f -- "no: 613.3M / 13,678" --> x["skipped<br/>(raw inputs, own COGs)"]
f -- "yes: 571.6M / 16,383" --> t["tile = f(cell_id, ncol=3103)"]
t --> p["cell_model/tile=*/*.parquet"]
p --> v["v7 sdm.duckdb:<br/>cell_model VIEW + cell_grid"]
librarian::shelf(DBI, dplyr, duckdb, fs, glue, here, jsonlite, logger, rlang, quiet = T)
source(here("libs/paths.R"))
V7_NCOL <- 3103L # v7 grid width (regional 0-360 raster)
v7_db <- msens::sdm_db_path("v7")
dir_v7 <- path_dir(v7_db)
cell_mc <- glue("{dir_v7}/cell_model") # local build target
srv_v7 <- "/share/data/big/v7"
do_all <- nzchar(Sys.getenv("V7_CELLMODEL_ALL")) # include non-taxon models
do_build <- !dir_exists(cell_mc) || nzchar(Sys.getenv("V7_CELLMODEL_REDO"))
do_deploy <- nzchar(Sys.getenv("DEPLOY_V7_CELLMODEL"))
stopifnot("v7 sdm.duckdb not found" = file_exists(v7_db))
log_info("v7 db: {v7_db} ({round(file_size(v7_db)/1e9, 2)} GB) -> {cell_mc}")
# ONE connection for the whole notebook, closed in the last chunk. `on.exit()` is
# the wrong idiom here: knitr fires it at the end of the chunk that registered it,
# so a connection opened in one chunk is already dead in the next.
con <- dbConnect(duckdb(v7_db, read_only = TRUE))
dbExecute(con, "PRAGMA memory_limit='12GB'"); dbExecute(con, "PRAGMA threads=6")[1] 0[1] 0dbExecute(con, glue("PRAGMA temp_directory='{dir_v7}/duckdb_tmp'"))[1] 0Partitioned, never globally sorted: an ORDER BY over ~572M rows previously spilled ~500 GB on the v8 build. partitioned_write_max_open_files is raised because every tile is written concurrently.
if (!do_build) {
log_info("{cell_mc} exists — skipping build (V7_CELLMODEL_REDO=1 to force)")
} else {
if (dir_exists(cell_mc)) dir_delete(cell_mc)
dbExecute(con, "SET partitioned_write_max_open_files=2048")
# the tile key comes from msens so writer and reader cannot drift (test-cell-model.R
# asserts they agree on this exact grid)
tile_sql <- msens::cell_model_tile_sql("mc.cell_id", ncol = V7_NCOL)
join_sql <- if (do_all) "" else
"JOIN (SELECT DISTINCT mdl_seq FROM taxon WHERE mdl_seq IS NOT NULL) t USING (mdl_seq)"
t0 <- Sys.time()
dbExecute(con, glue(
"COPY (SELECT {tile_sql} AS tile, mc.mdl_seq, mc.cell_id, mc.value AS val ",
" FROM model_cell mc {join_sql}) ",
"TO '{cell_mc}' (FORMAT PARQUET, PARTITION_BY tile, OVERWRITE_OR_IGNORE)"))
log_info("built in {round(as.numeric(difftime(Sys.time(), t0, units='mins')), 1)} min")
}A wrong tile id is still a valid tile id, so a writer/reader mismatch returns fewer rows, not an error. These checks would catch that: the same cells must resolve identically whether read by tile (pruned) or by cell_id alone (unpruned).
mc_glob <- glue("{cell_mc}/*/*.parquet")
smry <- dbGetQuery(con, glue(
"SELECT count(*) n_rows, count(DISTINCT mdl_seq) n_models,
count(DISTINCT tile) n_tiles, count(DISTINCT cell_id) n_cells
FROM read_parquet('{mc_glob}', hive_partitioning = true)"))
log_info("cell_model: {format(smry$n_rows, big.mark=',')} rows, {smry$n_models} models, ",
"{smry$n_tiles} tiles, {format(smry$n_cells, big.mark=',')} cells, ",
"{round(as.numeric(sum(file_size(dir_ls(cell_mc, recurse = TRUE, type = 'file'))))/1e9, 2)} GB")
# pruned vs unpruned must agree for a sample of cells
set.seed(42)
cid <- dbGetQuery(con, glue(
"SELECT DISTINCT cell_id FROM read_parquet('{mc_glob}', hive_partitioning = true)
USING SAMPLE 200 ROWS"))$cell_id
tiles <- msens::cell_model_tiles(cid, ncol = V7_NCOL)
ids <- paste(cid, collapse = ",")
n_pruned <- dbGetQuery(con, glue(
"SELECT count(*) n FROM read_parquet('{mc_glob}', hive_partitioning = true)
WHERE tile IN ({paste(tiles, collapse=',')}) AND cell_id IN ({ids})"))$n
n_plain <- dbGetQuery(con, glue(
"SELECT count(*) n FROM read_parquet('{mc_glob}', hive_partitioning = true)
WHERE cell_id IN ({ids})"))$n
log_info("tile pruning: {n_pruned} == {n_plain} over {length(cid)} cells, {length(tiles)} tiles")
stopifnot("tile pruning drops rows — writer/reader grid mismatch" = n_pruned == n_plain)
# and against the source table, so the taxon filter did not lose anything it should keep
n_src <- dbGetQuery(con, glue(
"SELECT count(*) n FROM model_cell mc
{if (do_all) '' else 'JOIN (SELECT DISTINCT mdl_seq FROM taxon WHERE mdl_seq IS NOT NULL) t USING (mdl_seq)'}"))$n
stopifnot("row count differs from source" = smry$n_rows == n_src)
log_info("row count matches source: {format(n_src, big.mark=',')}")
msens::report_table(tibble::tibble(
rows = smry$n_rows, models = smry$n_models, tiles = smry$n_tiles,
cells = smry$n_cells, grid_ncol = V7_NCOL,
scope = if (do_all) "all models" else "taxon-linked only"))| rows | models | tiles | cells | grid_ncol | scope |
|---|---|---|---|---|---|
| 571579928 | 16383 | 428 | 662075 | 3103 | taxon-linked only |
DEPLOY_V7_CELLMODEL=1)rsync the parquet, then register it in the server’s v7 sdm.duckdb — a cell_model VIEW (so species_for_cells() picks it up via use_cm) plus the cell_grid sidecar so msens::cell_grid_ncol() returns 3103 rather than the v8 default.
The DDL runs against a copy which is then swapped in atomically: every live v7 Shiny session holds a read lock, so an in-place write fails with Conflicting lock is held. mv is atomic within the filesystem, so in-flight sessions finish on the old inode and restart.txt rolls them over.
if (!do_deploy) {
log_info("DEPLOY_V7_CELLMODEL unset — built locally only")
} else {
# HARD GUARD, ordering matters. msens < 0.13.0 has no cell_grid_ncol(), so
# species_for_cells() would tile v7 cells with the 7200 default, prune away the
# very partitions holding them, and return FEWER SPECIES WITH NO ERROR. Ship
# msens first (DEPLOY_APPS=1 / DEPLOY_API=1), then register the view.
v <- system2("ssh", c("msens", shQuote(glue(
"docker exec -u shiny rstudio Rscript -e ",
shQuote("cat(as.character(packageVersion('msens')))")))), stdout = TRUE, stderr = TRUE)
v <- utils::tail(grep("^[0-9]+\\.[0-9]+", v, value = TRUE), 1)
if (!length(v) || package_version(v) < "0.13.0")
stop(glue("server msens is {v %||% '?'}; need >= 0.13.0 for cell_grid_ncol() — ",
"run DEPLOY_APPS=1 (and DEPLOY_API=1) on release_marine-atlas.qmd first, ",
"else v7 reports silently lose species"))
log_info("server msens {v} >= 0.13.0 — safe to register the v7 cell_model view")
# check every exit status explicitly: system2() reports failure only through its
# return value here, so an unchecked mkdir/rsync fails the render with NO usable
# message (the first attempt died exactly this way — 962 bytes of log, no error)
ok <- function(rc, what)
if (!identical(as.integer(rc), 0L)) stop(glue("{what} failed, exit {rc}"))
ok(system2("ssh", c("msens", shQuote(glue("mkdir -p {srv_v7}/cell_model")))), "mkdir")
ok(system2("rsync", c("-a", "--delete", glue("{cell_mc}/"),
glue("msens:{srv_v7}/cell_model/"))), "rsync cell_model")
log_info("synced cell_model -> msens:{srv_v7}/cell_model")
register <- glue(
"con <- DBI::dbConnect(duckdb::duckdb('{srv_v7}/sdm.duckdb.new')); ",
"DBI::dbExecute(con, \"CREATE OR REPLACE VIEW cell_model AS SELECT cm.tile, cm.mdl_seq, ",
"cm.cell_id, cm.val, cm.val AS value FROM read_parquet('{srv_v7}/cell_model/*/*.parquet', ",
"hive_partitioning = true) cm\"); ",
"DBI::dbExecute(con, 'CREATE OR REPLACE TABLE cell_grid AS SELECT {V7_NCOL} AS ncol'); ",
"cat('V7CM_OK', DBI::dbGetQuery(con, ",
"'SELECT count(*) n FROM cell_model WHERE tile = (SELECT min(tile) FROM cell_model)')$n, '\\n'); ",
"DBI::dbDisconnect(con, shutdown = TRUE)")
v7_apps <- c("mapgl", "mapsp")
cmd <- glue(
"set -e; ",
"cp -f {srv_v7}/sdm.duckdb {srv_v7}/sdm.duckdb.new; ",
"docker exec rstudio Rscript -e {shQuote(register)}; ",
"mv -f {srv_v7}/sdm.duckdb.new {srv_v7}/sdm.duckdb; ",
"{paste(sprintf('touch /share/github/MarineSensitivity/apps/%s/restart.txt', v7_apps), collapse='; ')}")
out <- system2("ssh", c("msens", shQuote(cmd)), stdout = TRUE, stderr = TRUE)
if (!any(grepl("V7CM_OK", out)))
stop(glue("register failed (exit {attr(out, 'status') %||% 0}):\n"),
paste(utils::tail(out, 25), collapse = "\n"))
log_info("v7 cell_model registered + apps reloaded: {grep('V7CM_OK', out, value = TRUE)}")
}msens::write_manifest(
here("data/manifests/build_v7_cell_model.json"),
target = "build_v7_cell_model",
content_hash = msens::hash_query(
con, glue("SELECT tile, mdl_seq, cell_id, val FROM read_parquet('{mc_glob}', hive_partitioning = true)")),
stats = list(
rows = smry$n_rows, models = smry$n_models, tiles = smry$n_tiles,
cells = smry$n_cells, grid_ncol = V7_NCOL,
scope = if (do_all) "all" else "taxon_linked"),
force = msens::force_target("build_v7_cell_model"))
dbDisconnect(con, shutdown = TRUE)
